CleanTent

Your quick cleanroom environment for service purposes

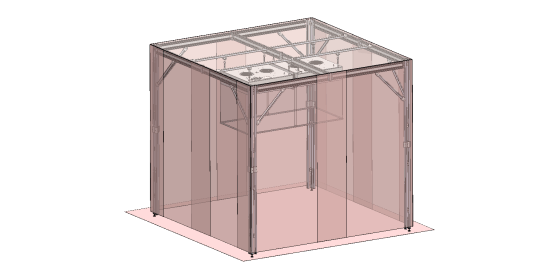

CleanTent
CleanTent_D30_Maße

You can create a clean environment quickly and easily with our CleanTent. Repair and maintenance work can be carried out quickly on sensitive products. This dismountable and transportable cleanroom cabin is supplied with clean air inside by means of fan-filter-modules (FFU) and can therefore achieve an air cleanliness class of ISO 5. In the remaining area of the fan-filter-modules an air cleanliness class ISO 6 – 7 is achieved.

Place your inquiry

like (1)

Advantages

The portable CleanTent is highly stable because of the frame structure made of round profiles. The CleanTent can be quickly and easily installed in any environment to meet the short-term needs of a clean environment.

  • For repair and maintenance work on sensitive products
  • Can be set up within approx. 45 minutes
  • Can be adapted in height, width and length
  • Up to air cleanliness class ISO 6 - 7

execution

Functionality

The CleanTent is supplied with  pure air with the help of the fan-filter-modules, which work on the recirculation principle. The air inside the cabin is sucked in and filtered and discharged into the working area. Thus the cleaned air flows through the entire working area and is again sucked in and filtered by the fan-filter-modules.

The frame structure is made of aluminium profile to ensure high stability. The base frame has a simple structure and is therefore easy to assemble and disassemble. The fan-filter-modules are suspended from the ceiling profiles. The PVC curtains supplied serve as aprons and electrostatically dissipative PE-films are installed inside the CleanTent as a bonnet. Another PE-film is supplied as a floor covering. The appropriate installation tools and replacement films are also included in the scope of delivery.

The achievable particle cleanliness class of the air depends on the processes taking place in the work area, the use of cleanroom-compatible materials, the installation conditions, the cleaning cycle, the behaviour of the employees and the cleanroom clothing used within the clean environment.

information

Further information

The important points in summary:

  • Consisting of aluminium frame, fan-filter-modules, PVC curtains and PE-film
  • Electrostatic dissipative disposable film
  • Supplied in 2 portable transport cases

Further technical data, dimensions and additional information can be found on our data sheet.

Download Data Sheet

Since there is no fresh air supply, do not use the unit permanently. We would be pleased to offer you alternative solutions for this, such as Softwall or Hardwall Cabins.

customer-support

Best solution for your process

The CleanTent can be used in (almost) any environment thanks to its shape and equipment. The aluminium frame is designed for quick and easy assembly. This covers short-term requirements that need to take place in the given clean environments. You can set up your clean environment within 45 minutes. Once the work is complete, you can quickly and easily dismantle the CleanTent and stow it away in a transport case on wheels.

check-circle-o

Applications

The CleanTent can be used in almost any environment and fulfils your short-term need for a clean environment. Such needs can be, for example, testing or maintenance of a device. The CleanTent can then be quickly and easily dismantled and stored in rollable, portable containers.
